L-D9SO1

Optional Link Pipe/Collector (SS) for

FIND A RESELLER IN YOUR COUNTRY

Power

+2.8 kW

at 8600 rpm

Torque

+3.3 Nm

at 7100 rpm

Weight

-3.8 kg

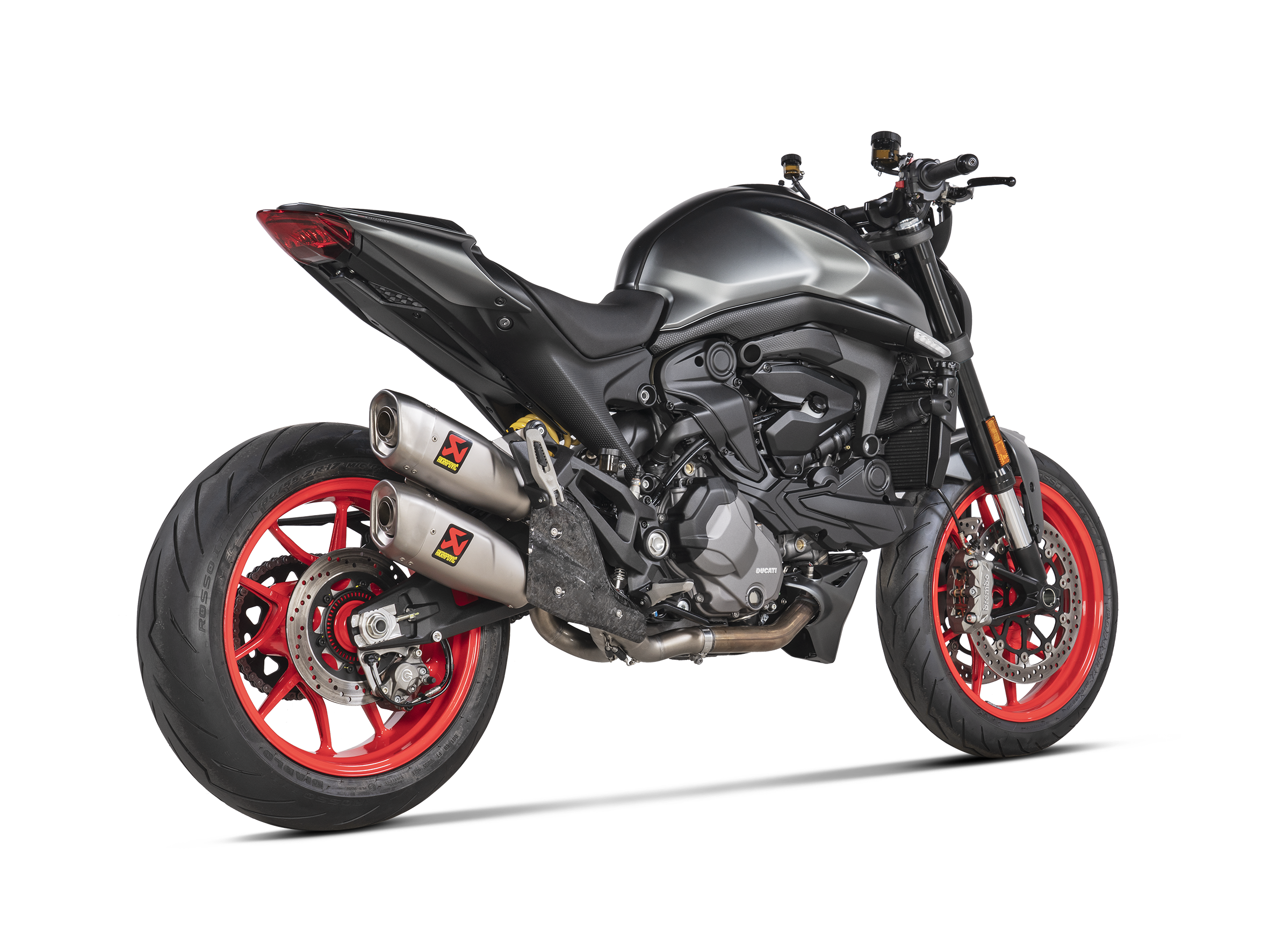

Built from high-grade stainless steel, the newly developed optional link pipe is aimed at riders looking for better performance and weight reduction. Its design removes the stock pre-muffler – where the stock catalytic converter is located – allowing less restricted gas flow to aid performance in the mid and high rev range. When combined with a Slip-On Line (Titanium), the pairing enhances power by 2.8 kW (3.8 hp) at 8,600 rpm and torque rises by 3.3 Nm at 7,100 rpm (when tested on the Akrapovič dyno in comparison to a Monster using a standard stock exhaust), while serving up a deep, racing sound. Weight is reduced by 3.8 kg, which is a saving of 80% against the stock version. Developed for use on closed-course tracks and racetracks only, remapping of the ECU is recommended to get the optimum performance from this race-derived accessory.

Installation of the optional link pipe (SS) makes EC/ECE type approval of the Slip-On Line (Titanium) invalid.

THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.

EXPERIENCE THE SOUND

VIEW THE DATA

DOWNLOAD DOCUMENTS

Optional Link Pipe/Collector (SS) for null null null

EXPERIENCE THE SOUND

Immerse yourself in the sound of the null null exhaust systems.

Stock exhaust

Optional LP with Slip-On

VIEW THE DATA

	Unit	Akrapovič	Max gain
Max. power	kW	78.5 / 9400 rpm	+ 2.8 / 8600 rpm
	HP (m)	106.7 / 9400 rpm	+ 3.8 / 8600 rpm
	HP (i)	105.2 / 9400 rpm	+ 3.7 / 8600 rpm
Max. torque	Nm	90.8 / 7800 rpm	+ 3.3 / 7100 rpm
	lb-ft	67 / 7800 rpm	+ 2.4 / 7100 rpm
Weight	kg	0.96	- 3.8
	lb	2.1	- 8.5
	%		- 80
Volume	dB	106.5 / 4000 rpm
Inst. time	min	60

DOWNLOAD DOCUMENTS

Performance graph / PDF (1,5Mb)

Installation instructions - DE, IT, FR, ES, PT, SI / PDF (1,5Mb)

Installation instructions - EN / PDF (1,5Mb)
