S-Y5R6-HZEMT
Racing Line (Titanium) for




Power
+0.9 kW
at 6200 rpm
Torque
+1.3 Nm
at 6200 rpm
Weight
-1.9 kg

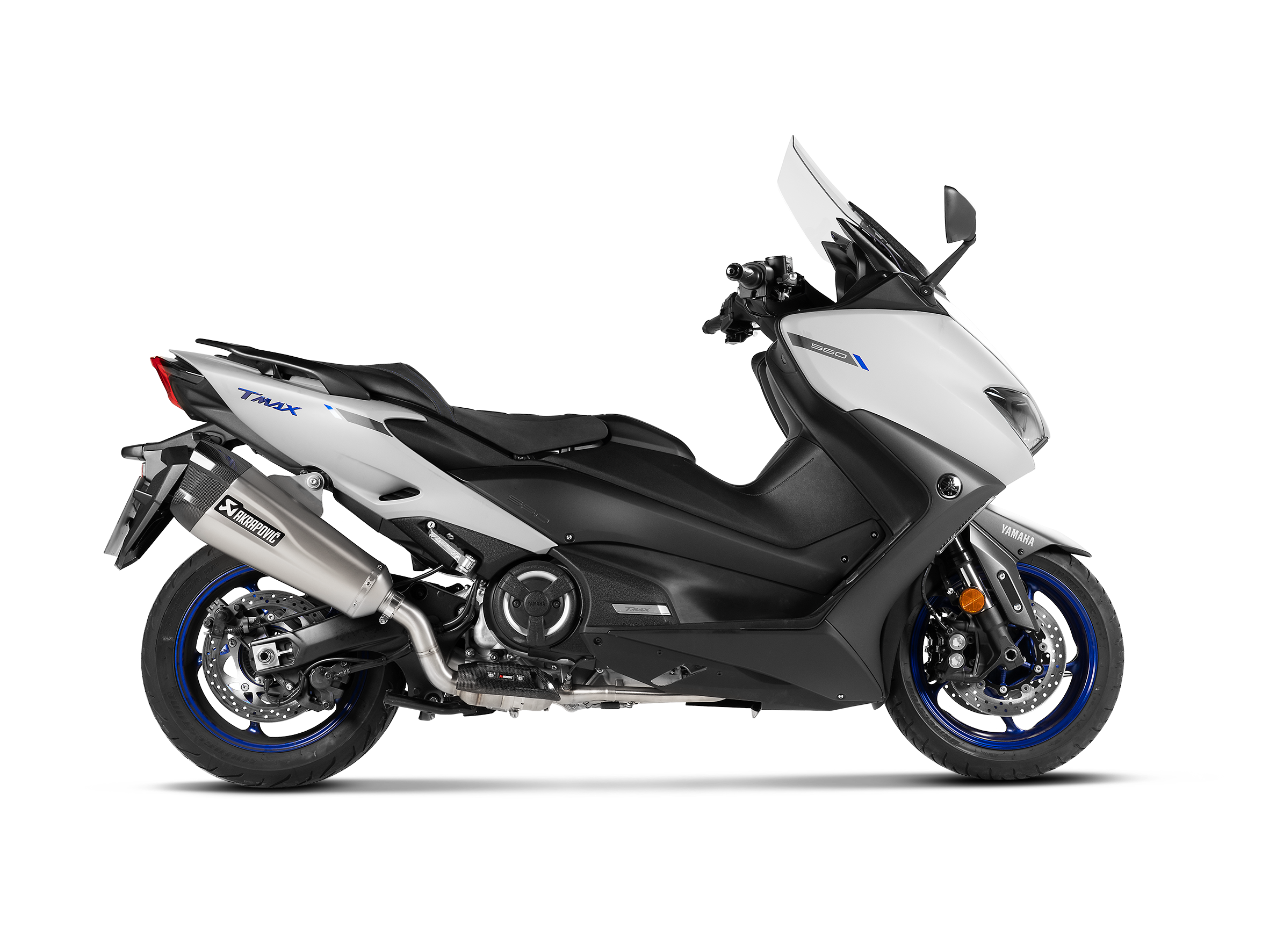

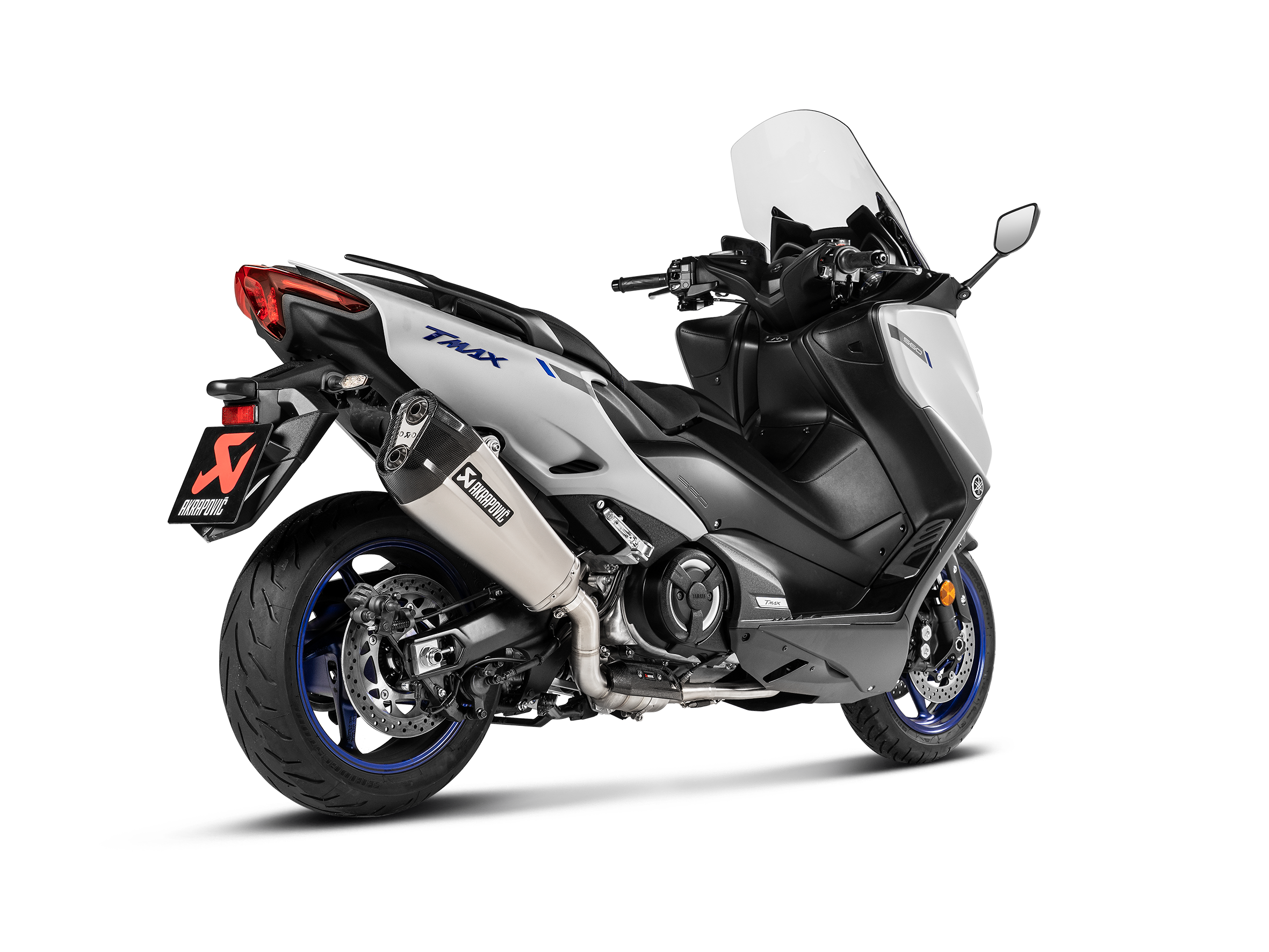

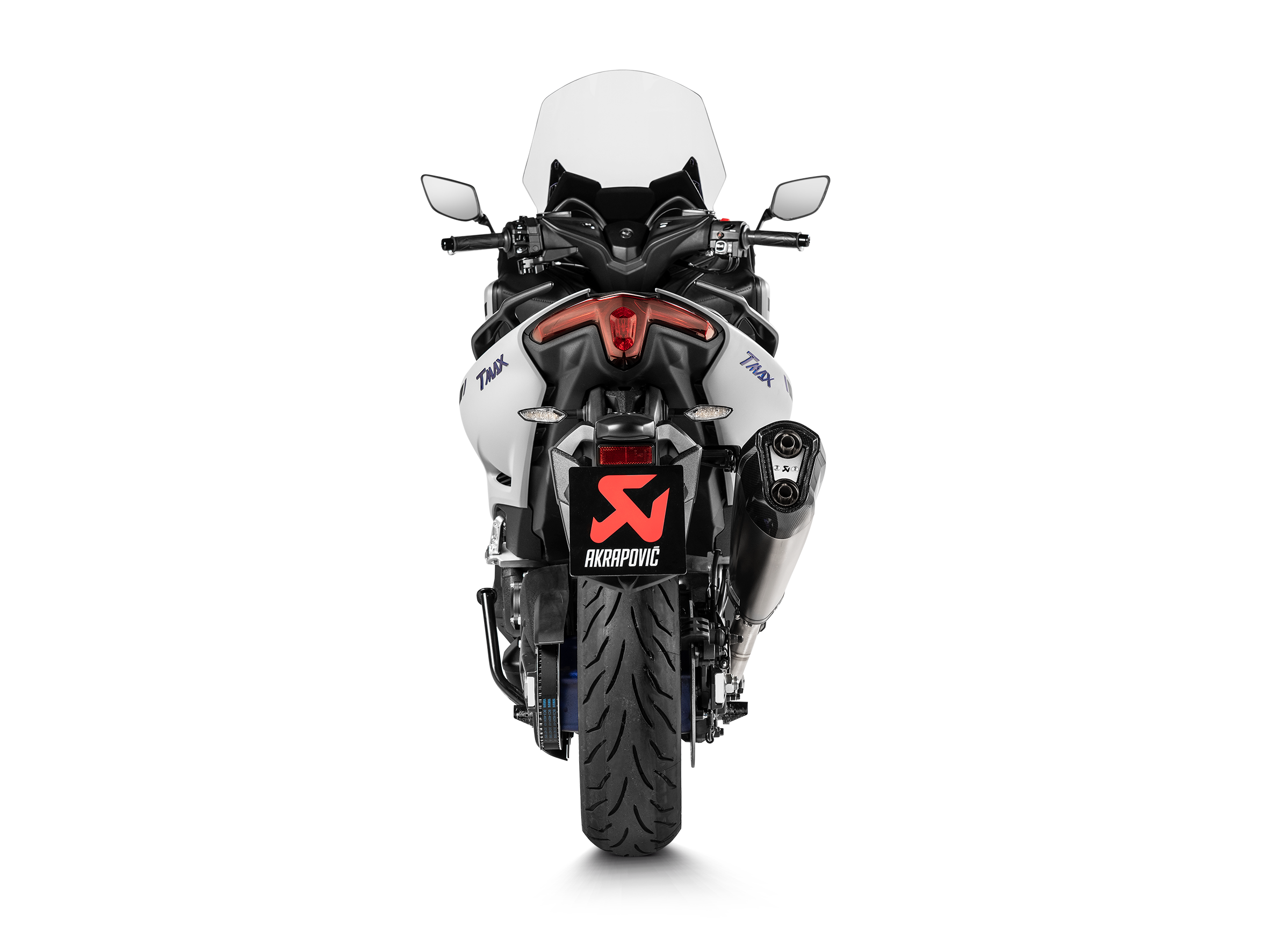

Developed from a concept that was first aired at EICMA 2015, the Racing Line (Titanium) fits perfectly within the sporty lines of the Yamaha TMAX. This ultimate sports maxi scooter already has a presence on the road, and the addition of this stunningly designed Akrapovič exhaust system will take it to new aesthetic heights as it perfectly enhances the TMAX’s design. The unique shape of the muffler, with its embossed Akrapovič logo imprints that run all the way along the exhaust and blend in seamlessly with the hand-crafted carbon fibre endcap, takes design to new levels and demonstrates that the Slovenian exhaust specialists are constantly looking towards the future with their innovative and high-tech exhaust technology. To compliment the stunning looks, the Racing Line exhaust system also delivers more power than the stock system, and the use of high-grade lightweight material means it also has a significant weight saving, which aids handling. The impressive visual appearances and improved performance are further boosted by an exclusive Akrapovič sound that is perfectly tuned to provide ideal aural desirability. With simple plug-and-play installation and EC/ECE–compliant, this is a system that takes the Yamaha TMAX to an unrivalled position in the maxi scooter market.
Catalytic converter is included within the system.
EXPERIENCE THE SOUND
Immerse yourself in the sound of the Yamaha TMAX exhaust systems.
| Unit | Akrapovič | Max gain | |
|---|---|---|---|
| Max. power | kW | 31.3 / 6500 rpm | + 0.9 / 6200 rpm |
| HP (m) | 42.5 / 6500 rpm | + 1.2 / 6200 rpm | |
| HP (i) | 41.9 / 6500 rpm | + 1.1 / 6200 rpm | |
| Max. torque | Nm | 50.47 / 5550 rpm | + 1.3 / 6200 rpm |
| lb-ft | 37.2 / 5550 rpm | + 1 / 6200 rpm | |
| Weight | kg | 6.6 | - 1.9 |
| lb | 14.6 | - 4.1 | |
| % | - 22.4 | ||
| Inst. time | min | 20 |
Schematic new version / PDF (1,5Mb)
AUS Approval / PDF (1,5Mb)
AUS Approval / PDF (1,5Mb)
Installation instructions - EN / PDF (1,5Mb)
Installation instructions - DE, IT, FR, ES, PT, SI / PDF (1,5Mb)
Performance graph / PDF (1,5Mb)
EC Type-Approval Certificate / PDF (1,5Mb)
ECE Type-Approval Certificate / PDF (1,5Mb)
EC Type-Approval Certificate / PDF (1,5Mb)
EC Type-Approval Certificate / PDF (1,5Mb)
Akrapovič's product line includes products regulated by national and international emission regulations. Akrapovič makes every effort to provide accurate information on compliance of our products with various regulations and identify if they are for competition-use only or for general street/highway use in the regulated area. However, unless an explicit compliance label is indicated for a specific product, Akrapovič does not make any statement of compliance. It is the user's responsibility to choose an appropriate product for the intended use. As regulations change over time, please check the key on the website to verify the compliance with the current regulations..
Please make sure the product is installed in line with installation instructions and used in accordance with all local regulations, as the compliance label may otherwise not be valid.
