S-Y9R11-HAPT

Racing Line (Titanium) for

ECE

FIND A RESELLER IN YOUR COUNTRY

Power

+1.5 kW

at 10000 rpm

Torque

+1.3 Nm

at 9700 rpm

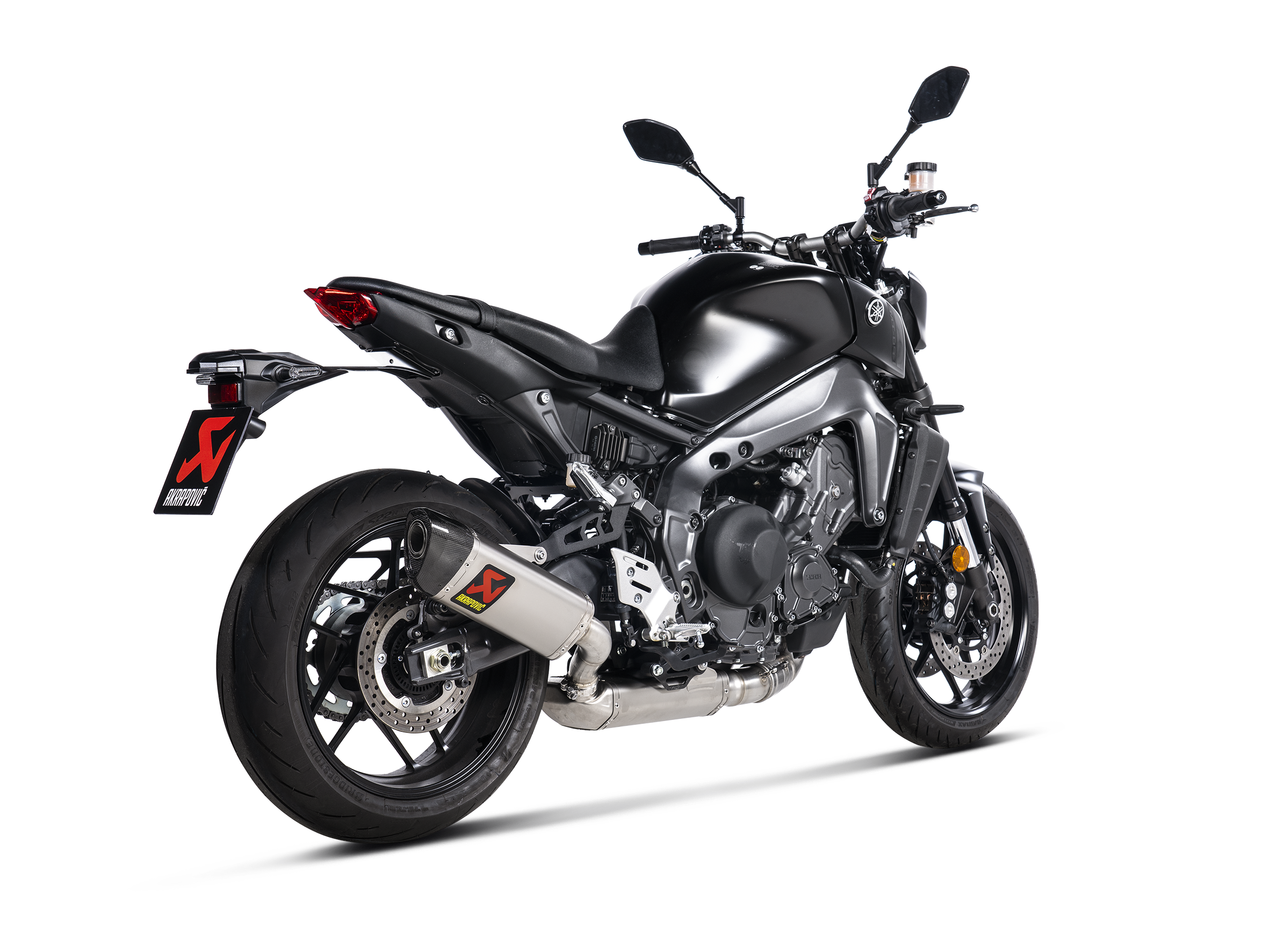

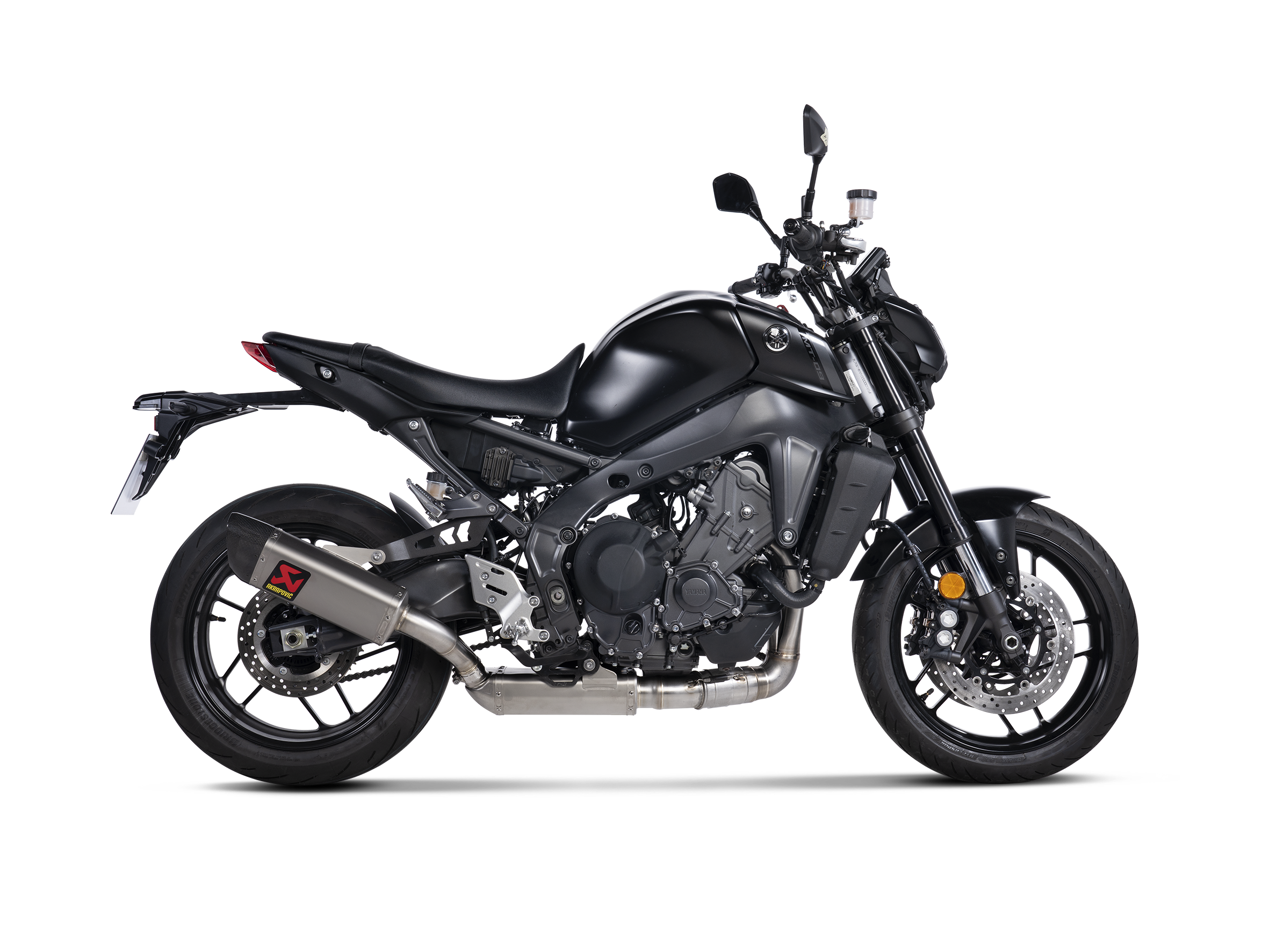

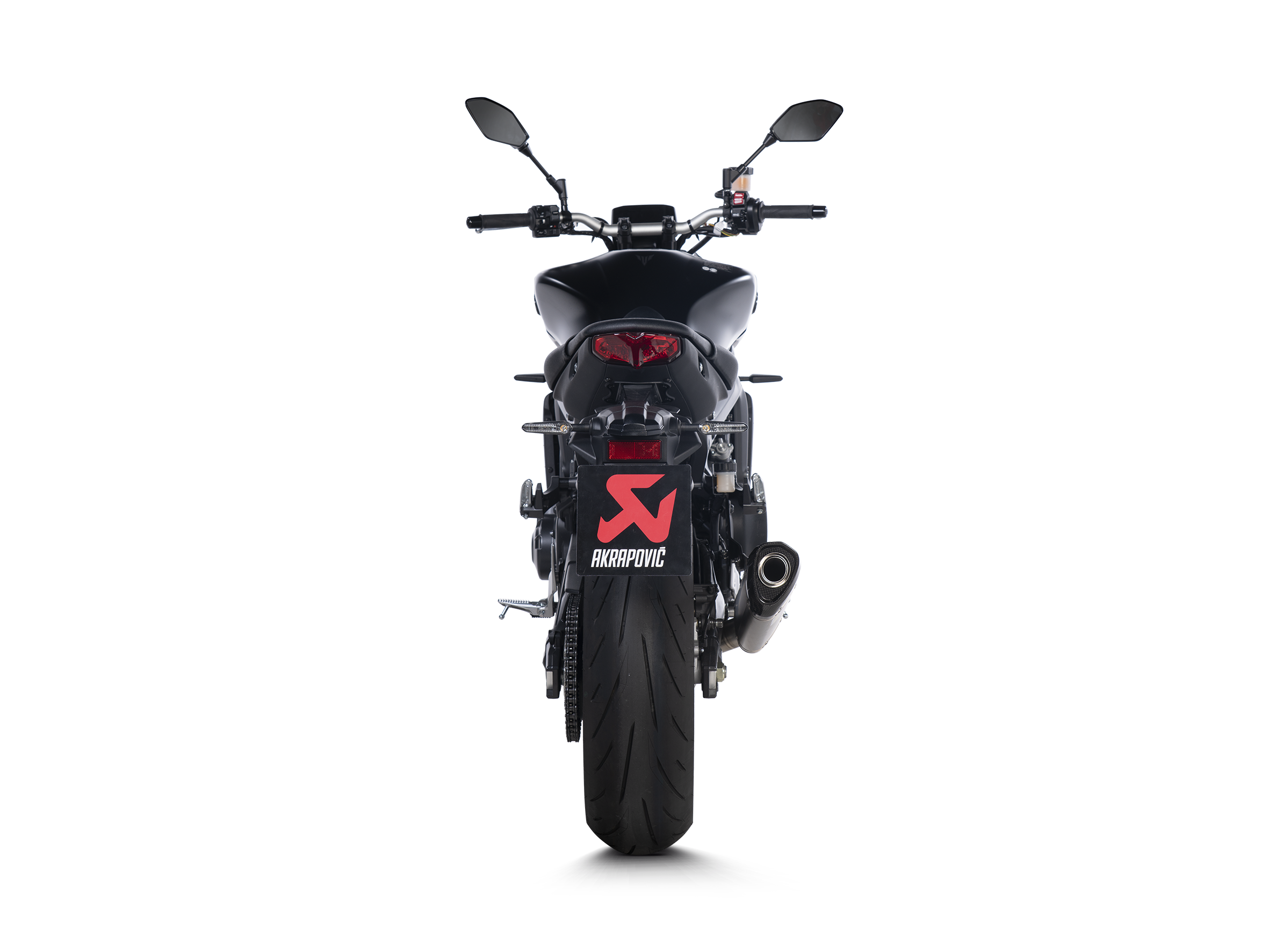

The Racing Line represents a full step in the exhaust system tuning process and offers a great balance between price and optimum performance. Racing performance exhaust systems are designed for riders that demand maximum performance from their motorcycle. The systems feature exceptional production quality and increased engine performance combined with pure racing sound output. An increment by 1.5 Kw (2.0 HP) and 1.3 Nm was recorded on Akrapovič’s in-house dyno with back-to-back tests of the Yamaha with a Racing Line (Titanium) exhaust and a Yamaha MT-09 with a standard stock exhaust system. A combination of racing materials like high-grade titanium for the muffler outer sleeve give these exhaust system a racing touch.

Catalytic converter is included within the system.

Exhaust system is compatible with side cases.

EXPERIENCE THE SOUND

VIEW THE DATA

DOWNLOAD DOCUMENTS

Racing Line (Titanium) for null null null

EXPERIENCE THE SOUND

Immerse yourself in the sound of the null null exhaust systems.

Complete

stock exhaust

VIEW THE DATA

	Unit	Akrapovič	Max gain
Max. power	kW	86.8 / 10000 rpm	+ 1.5 / 10000 rpm
	HP (m)	118.1 / 10000 rpm	+ 2 / 10000 rpm
	HP (i)	116.4 / 10000 rpm	+ 2 / 10000 rpm
Max. torque	Nm	92.3 / 7150 rpm	+ 1.3 / 9700 rpm
	lb-ft	68.1 / 7150 rpm	+ 1 / 9700 rpm
Inst. time	min	60

DOWNLOAD DOCUMENTS

Schematic new version / PDF (1,5Mb)

AUS Approval / PDF (1,5Mb)

EC Type-Approval Certificate / PDF (1,5Mb)

ECE Type-Approval Certificate / PDF (1,5Mb)

EC Type-Approval Certificate / PDF (1,5Mb)

Performance graph / PDF (1,5Mb)

Installation instructions - EN / PDF (1,5Mb)

Installation instructions - DE, IT, FR, ES, PT, SI / PDF (1,5Mb)

AKRAPOVIČ PRODUCTS AND REGULATIONS

Akrapovič's product line includes products regulated by national and international emission regulations. Akrapovič makes every effort to provide accurate information on compliance of our products with various regulations and identify if they are for competition-use only or for general street/highway use in the regulated area. However, unless an explicit compliance label is indicated for a specific product, Akrapovič does not make any statement of compliance. It is the user's responsibility to choose an appropriate product for the intended use. As regulations change over time, please check the key on the website to verify the compliance with the current regulations..

Please make sure the product is installed in line with installation instructions and used in accordance with all local regulations, as the compliance label may otherwise not be valid.

LEARN MORE ABOUT REGULATIONS

EPA

Means that such product meets the EPA noise standard as set forth by the United States Code of Federal Regulations, Title 40, Chapter I, Part 205, Subpart E (80 dBA).

Means that such product is compliant with the applicable requirements of the European Union Directive EC 97/24 or the European Commission Delegated Regulation (EU) No. 134/2014 supplementing Regulation No. 168/2013 (EU) of the European Parliament and of the Council as indicated in the attached EC type approval document in the package and available on the product website.

Means that such product meets the USAD Forest service Standard for spark arresters FS5100-1.

ECE

For motorcycle exhaust systems: Means that such product is compliant with the requirements of the United Nations Regulation ECE-R92 on Uniform provisions concerning the approval of non-original replacement exhaust silencing systems (RESS) for motorcycles, mopeds and three-wheeled vehicles.

For car exhaust systems: Means that such product is compliant with the requirements of the United Nations Regulation ECE-R59 on Uniform provisions concerning the approval of replacement silencing systems.

ABE

Means that such product is compliant with the requirements of the German Type Approval, paragraph 20 of the StVZO.
