S-Y9R12-APC

Racing Line (Carbon) for

FIND A RESELLER IN YOUR COUNTRY

Power

+3.3 kW

at 9600 rpm

Torque

+3.4 Nm

at 9650 rpm

Weight

-2.6 kg

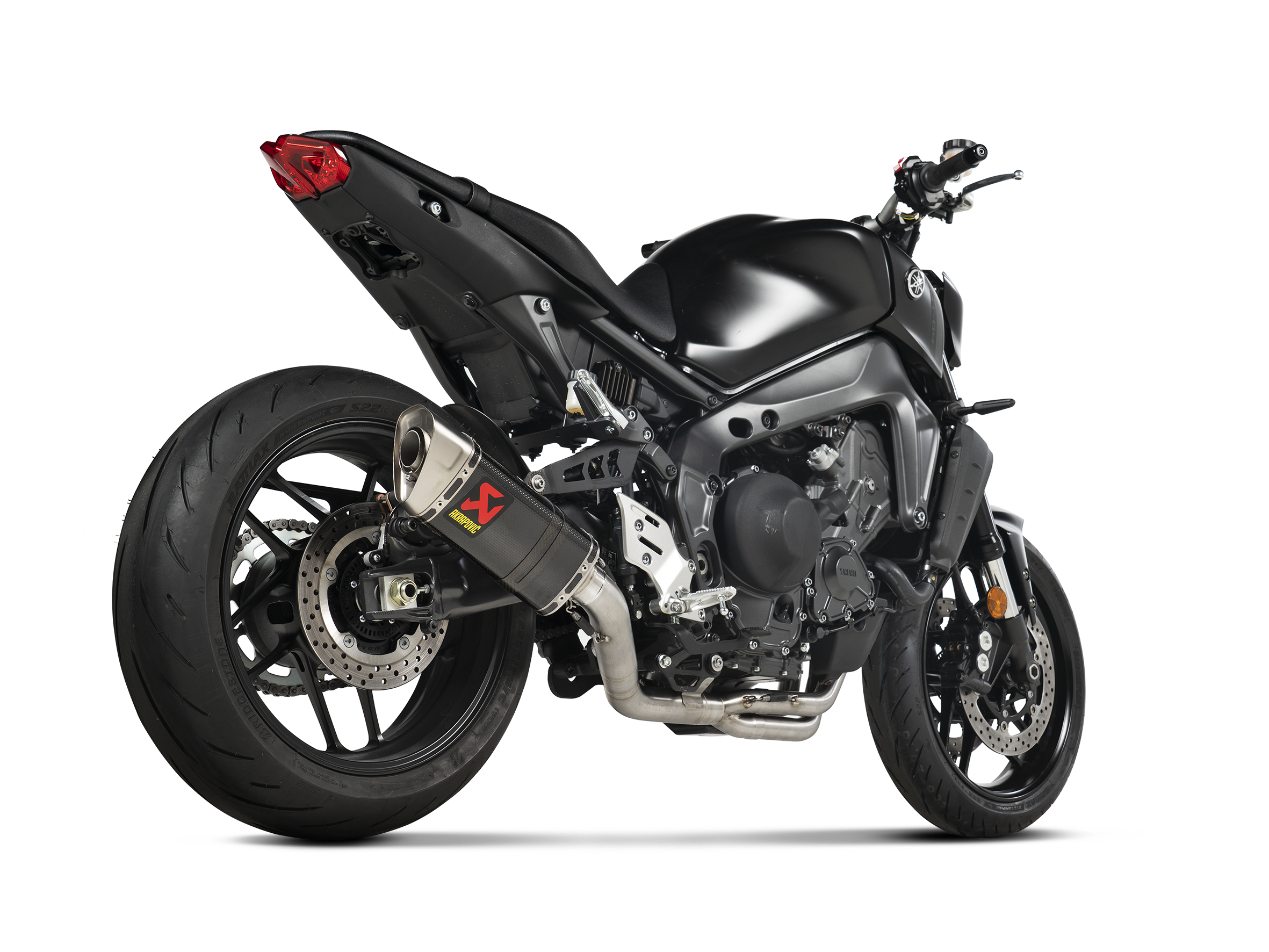

This exhaust has a lightweight carbon-fibre muffler outer sleeve, combined with stainless steel link pipes and headers and finished with a titanium end cap, to produce a system that is 2.6 kg (36,5%) lighter than stock.

The new design features a shorter muffler for an enhanced sporty look, which exits on the side of the bike for visual impact. Power is increased by 3.3 kW (4.5 hp) at 9,600 rpm when compared in back-to-back tests on a MT-09 with a Racing Line (Carbon) exhaust and a standard stock exhaust system.

The sporty racing sound is perfectly tuned to the engine. It is designed for use on tracks and closed-course competition circuits.

The exhaust system is compatible with Yamaha hard cases and centre stand accessories.

When installing the Racing Line (Carbon) exhaust system the check engine light may appear.

THIS PRODUCT DOES NOT MEET EMISSION COMPLIANCE REQUIREMENTS FOR STREET OR HIGHWAY USE.

EXPERIENCE THE SOUND

VIEW THE DATA

DOWNLOAD DOCUMENTS

Racing Line (Carbon) for null null null

EXPERIENCE THE SOUND

Immerse yourself in the sound of the null null exhaust systems.

Complete

Stock

VIEW THE DATA

	Unit	Akrapovič	Max gain
Max. power	kW	88.5 / 10000 rpm	+ 3.3 / 9600 rpm
	HP (m)	120.4 / 10000 rpm	+ 4.5 / 9600 rpm
	HP (i)	118.7 / 10000 rpm	+ 4.4 / 9600 rpm
Max. torque	Nm	94 / 7200 rpm	+ 3.4 / 9650 rpm
	lb-ft	69.3 / 7200 rpm	+ 2.5 / 9650 rpm
Weight	kg	4.45	- 2.6
	lb	9.8	- 5.7
	%		- 36.5
Volume	dB	104.5 / 5000 rpm	9
Inst. time	min	60

DOWNLOAD DOCUMENTS

Schematic new version / PDF (1,5Mb)

Installation instructions - EN - NAV-1422Y YAMAHA MT-09 20 RAC_EN.pdf / PDF (1,5Mb)

Performance graph - YAMAHA MT-09 20 Complete(RACING LINE) / PDF (1,5Mb)

Installation instructions - DE, IT, FR, ES, PT, SI / PDF (1,5Mb)
